Pad printing machine(also called tampo printing machine) is a printing process that can transfer a 2D image onto a 3D object. This is accomplished using an indirect offset (gravure) printing process that involves an image being transferred from the cliché via a silicone pad onto a substrate.

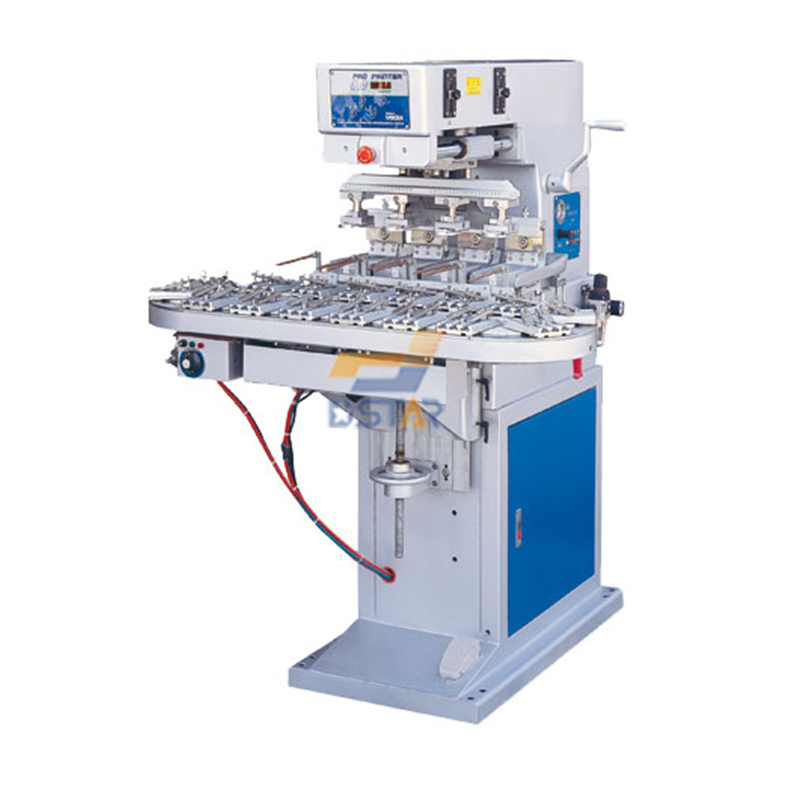

DX-M4C pad printer
DX is short name of our company
M is one of the pad printer series(MINI,P,S,M,L)
4 mean 4 color
C mean conveyor
Technical parameters
Model:DX-M4C (open inkwell system) Standard printing plate size:10*100*200mm Printing speed:1000 times/hr Air pressure:5-7 bar N.W:260 kgs Machine dimension:L120*W15*H150 cm Packing:wooden case
Oval belt conveyor
Slidding shuttle
Pad printer consumables
Pad printing plate
Silicone pad
Pad printing ink and ink solvent
Work piece fixture
Ink blade(for open ink well system)
Sealed ink cup (for ink cup system)
Pad printing samples
Stationery industry printing
Textile printing
Medical supplies printing
Hardware printing
Electronic printing
Toys printing
Packing printing
Glass products printing
Difference between open ink well and sealed ink cup
Open ink well systems, the older method of pad printing, used an ink trough for the ink supply, which was located behind the printing plate. A flood bar pushed a pool of ink over the plate, and a doctor blade removes the ink from the plate surface, leaving ink on the etched artwork area ready for the pad to pick up.
Sealed ink cup systems employ a sealed container which acts as the ink supply, flood bar and doctor blade all at the same time. A ceramic ring or tungsten ring with a highly polished working edge provides the seal against the printing plate.
Shenzhen Dstar Machine Co.,ltd is committed to providing customers with more efficient and higher-quality mechanical products. We have reached long-term cooperative relationships with many Fortune 500 companies and industry benchmark companies. Keeping pace with the times and continuous innovation are the foundation for our long-term development. Many machines are the first in the industry and are favored by many customers, such as automatic pvc ball printing machine,automatic bottle cap printing machine,automatic bottle screen printer,automatic label printing machine…
Being one of the professional cosmetics suppliers, our raw material was selected from global range, applying top-quality international standard as quality control. We devote to be a world-class quality manufacturer for customers.
DSTAR machine design
Machine CNC process
DSTAR machine assembly
Ready to ship
Shipping
exhibition
wooden packing
1.how to place order with your company?
please send online inquiry.Then our sales will reply offer to you. If customer agree with offers,companies will sign sales contract. Next,the buyer shall fulfill payment obiligation,dstar machine will start order production.
2.can you print samples for checking quality?
Yes,we can
3. is there operation training?
Yes,we provide free training in our workshop.
4. how long warranty of the machine?
1 year+lifelong technical supports
5. which payment item do you accept?
L/C(100% irrevocable at sight) or T/T(30%deposit+70% balance before shipping)
